X-Drive Carbon - Cruising Mainsail

An Italia 12.98 with X-Drive carbon full-batten mainsail and roller/furling genoa. The base fabric has a white taffeta on the side opposite the tapes, while the main has taffeta applied over the tapes on the leech for extra durability.

An example of the greater coverage of tapes on an X-Drive sail compared to a Tape-Drive sail.

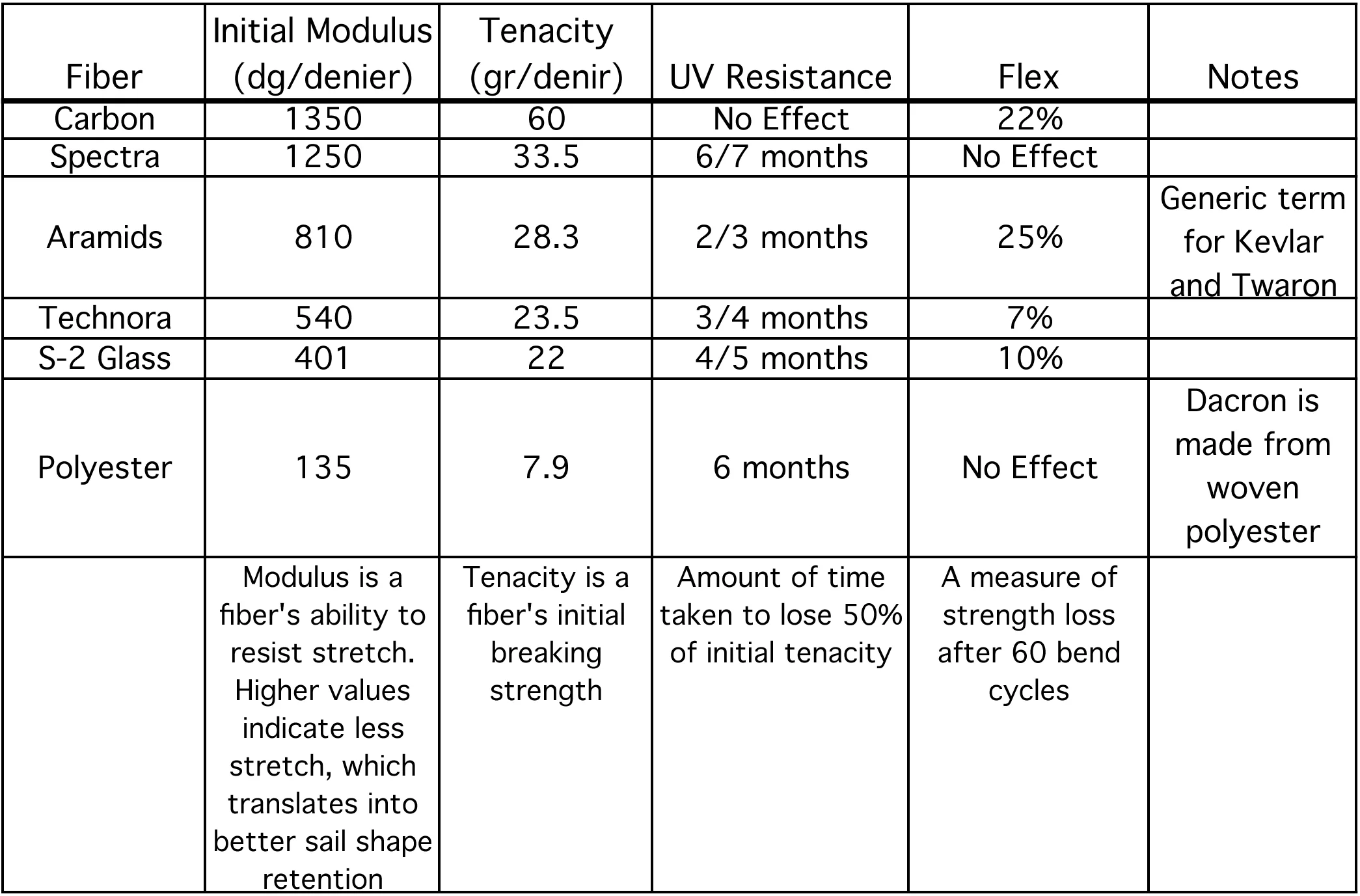

Carbon fiber is the highest performance yarn used in sailmaking. As seen below, carbon yarns are at the top of the chart in three out of four ways to measure their performance.  Carbon fiber’s resistance to stretch is three times greater that S-Glass yarns, which are, in tern, three times more stretch resistant than polyester yarns.

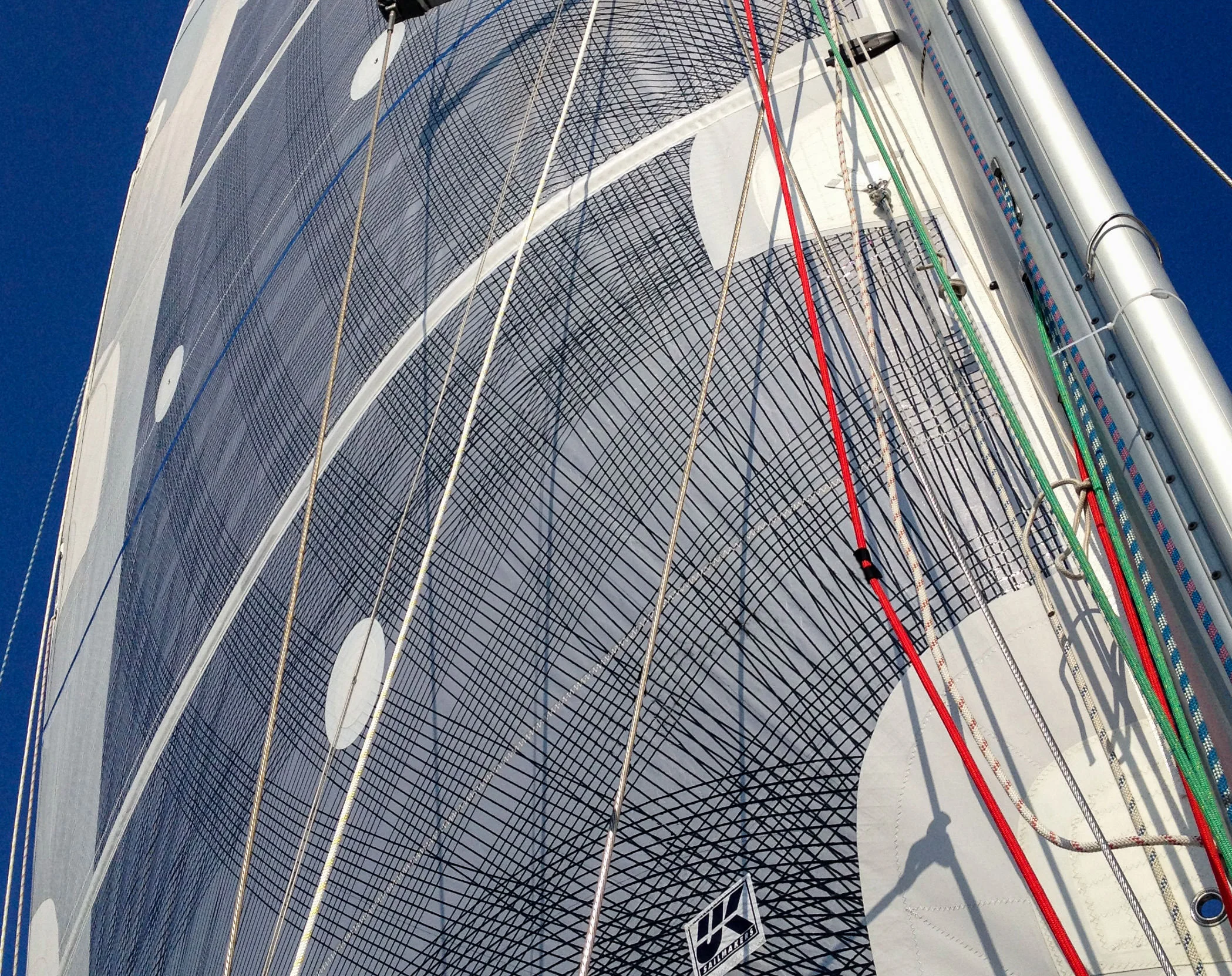

Even though the individual tapes in an X-Drive sail are very narrow, their almost complete coverage of the sail leads to a smooth flying shape. UK Sailmakers’ tape laying machine puts down up to 11 tapes at a time in a 20 cm wide path (8 inches wide), which means there are hundreds of tapes on the sail. Since each tape has 4000 carbon filaments there are up to 44,000 filaments of carbon are laid at time, giving the sail great strength along with the ability to keep its designed shape. This means UK Sailmakers can use lighter and less expensive laminates than would be used in Tape-Drive sails, and that savings is passed on.

All the carbon yarns used in X-Drive tapes are dry (not coated in glue) which keeps them from becoming brittle. Keeping the carbon yarns dry improves their flexibility.

A Lingett 43 with X-Drive carbon sails for both cruising and club racing. On this sail, a taffeta layer has been bonded over all the X-Drive tapes for more durability.

Close-up of carbon X-Drive tapes on a polyester laminate.

Extra Durability With Taffeta

To help protect today’s sails and extend their peak performance lives, UK Sailmakers can build all our X-Drive racing sails where one or both sides of the laminate is fully covered with a lightweight finely-woven polyester taffeta. Not only does taffeta protect the film layer from abrasion, but it also prevents cracking of the film and reduces creasing. While doesn't adds any strength, it does make sails last longer. We also offer the option of putting a layer of taffeta over the X-Drive tapes on the leech of the sail as shown below.

Taffeta is available in white or a medium grey color.

Partial Taffeta Option

  Shown above is a Dehler 34 main with taffeta on one full side and over the tapes on the second side.

Shown above is a Dehler 34 main with taffeta on one full side and over the tapes on the second side.

The leech of any sail benefits from having extra taffeta protection. Adding taffeta to the leech of an X-Drive mainsail reduces the destructive effects of leech flutter, luffing and flogging. Mainsails can flog in heavy air as the boat is de-powered and when the sail is being hoisted or lowered. Leech flutter happens when the leech line is not properly tensioned. The X-Drive construction method allows sailors to choose a sail with taffeta on one side of the sail, on one side and on the leech of the second side, or fully covering both sides. The more taffeta, the more protection -- at the cost of more weight aloft.

UK Sailmakers will work with you to determine the right amount of taffeta to add to your sails based on your boat, the kinds of sailing you do, and your budget. Having both sides covered with taffeta makes a sail more durable, but also would make the sail heavier. UK Sailmakers offers a Partial Taffeta option to save weight and cost.
