Racing Mainsail


A MAT 12 sailing with Carbon X-Drive® sails

UK Sailmakers’ X-Drive sails are the preferred choice for sailors who are looking for the performance of continuous yarn sails yet also want sails that are durable and affordable. Because they deliver on all three points, X-Drive sails have proven to be the ideal choice for racers, club racers and performance cruisers.


The IOR Half Tonner RED CLOUD with X-Drive carbon sails.

Holds Its Shape

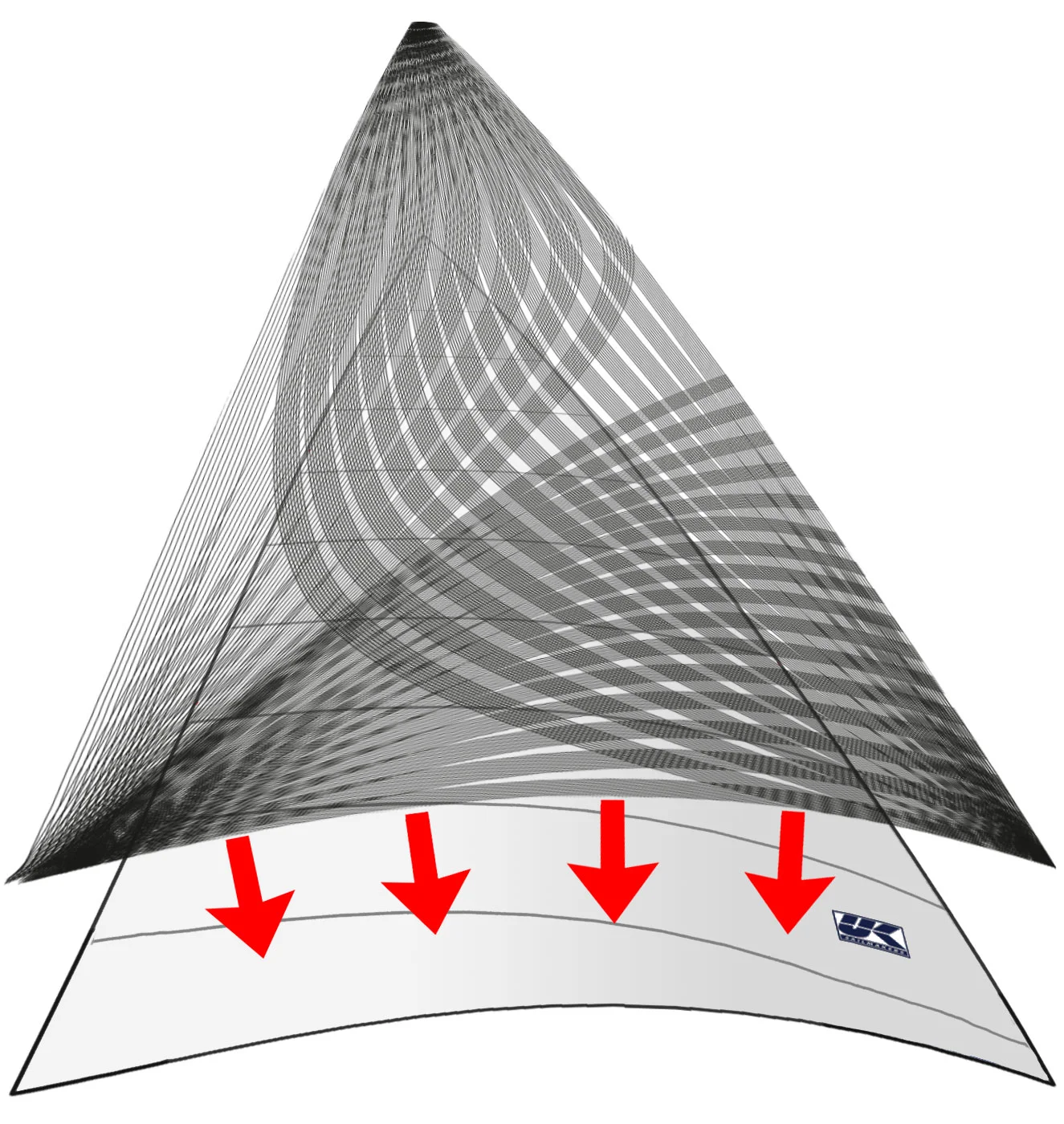

X-Drive is a two-part construction method. As the diagram shows, the sail is made from a light weight material cut into cross cut panels that when put together with broad seaming to achieve the 3-D shape created by the sail designer. Next the sail is reinforced with a grid of narrow high-strength, low-stretch fibers that are bonded to the sail 11 at a time.


Close up of the carbon X-Drive fibers near the tack of a genoa. The dark horizontal line is the seam between panels. The X-Drive fibers are bonded to the sail across the seams, which prevents speed-killing seam-creep.

X-Drive sails are created using a two-part construction method. The first step starts with lightweight laminated sail cloth that’s cut into cross-cut panels with shaped seams. Once the broad-seamed panels are assembled, the sail will have the exact aerodynamic shape the sail designer created.

Then UK Sailmakers uses proprietary machines to lay-down a grid of continuous yarns that span the sail. These yarns run continuously from corner-to-corner following the sail’s primary load paths. These yarns are high-strength and low -stretch and they serve the same purpose as the steel skeleton in a tall building – the yarns carry the highest loads in the sail while the paneled skin defines the aerodynamic shape.

And since the continuous, high-strength yarns cross over the seams between the cross-cut panels, seam creep and catastrophic sail failures are eliminated.

Depending on your specific needs and which X-Drive sail you select, these yarns can be carbon fiber, Endumax or S-Glass. A grid of carbon fiber yarns on a laminate with a black aramid scrim gives the sail an all-black appearance. For those who prefer sails that are all-white, X-Drive Silver sails look like traditional, all-white sails.

Cost Effective

The cost of the sail is also controlled because the sail surface can be made out of a less expensive, lightweight laminated material, whose only job is to give the sail its 3-D shape. All the sail‘s strength comes from the dense grid of continuous high-strength fibers that are bonded to the sail’s surface.

Construction Options


X-Drive Carbon

Description:
Loadpath reinforced sail construction for performance cruising and club racing.

Construction:
Extra lightweight cross-cut laminate panels reinforced with continuous corner-to-corner carbon fiber yarns.

Material:
Carbon fiber loadpath yarns applied 11 at a time along the sail’s computer predicted loadpaths. Carbon fiber is the strongest and least stretchy yarn used in sailmaking.

Shape Stability:
★★★★

Durability:
★★★★

Shape after 500 hours:
Circa 80%

Price:
$$$$


X-Drive Silver

Description:
Loadpath reinforced sail construction for performance cruising and club racing. Allows for an all white appearance.

Construction:
Extra lightweight cross-cut laminate panels reinforced with continuous corner-to-corner S-Glass yarns.

Material:
S-Glass fiber loadpath yarns applied 11 at a time along the sail’s computer predicted loadpaths. Glass fiber yarns have more stretch than carbon but are less expensive.

Shape Stability:
★★★

Durability:
★★★★

Shape after 500 hours:
Circa 70%

Price:
$$$$
