Racing Headsails: X-Drive

Arcona435partialtaffeta

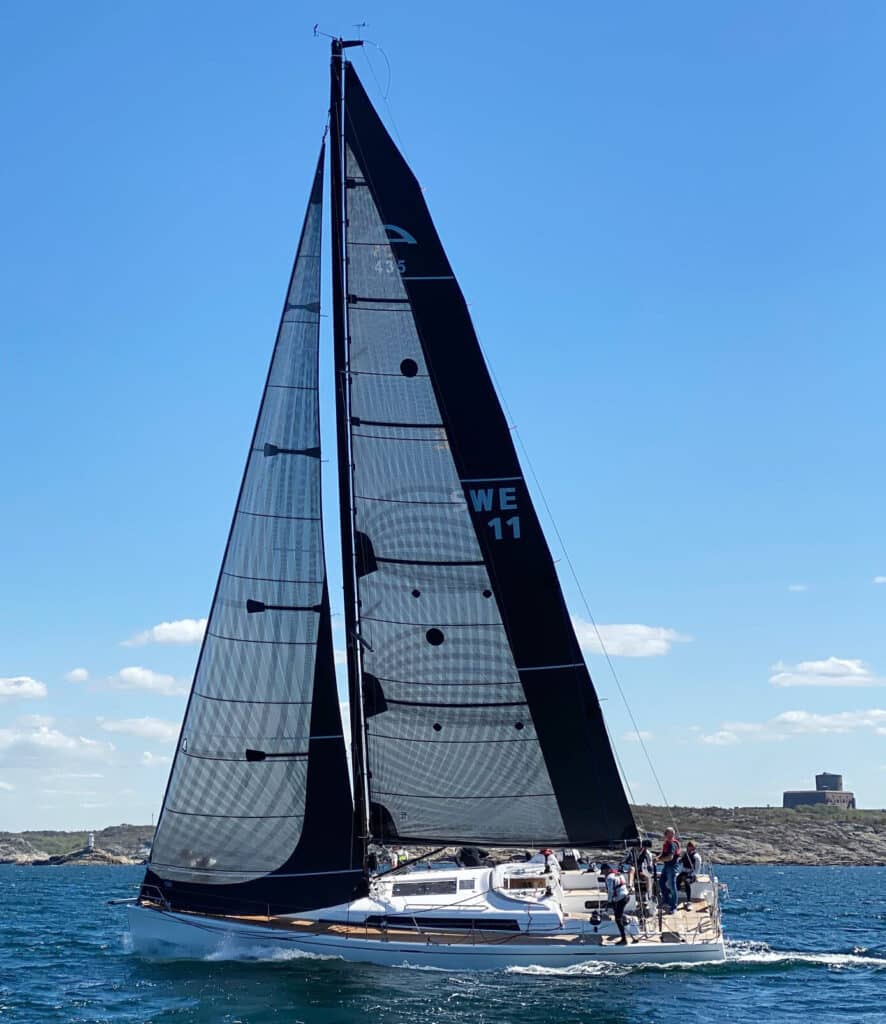

An Arcona 435 with X-Drive® carbon sails. Both sails have partial taffeta layers on their leeches for extended durability. The jib has minimal extra taffeta to save weight. Photo by Peter Gustaffson/Blur.se

UK Sailmakers’ X-Drive® sails are the preferred choice for sailors who are looking for the performance of continuous yarn sails yet also want sails that are durable and affordable. Because they deliver on all three points, X-Drive sails are the ideal choice for racers, club racers, and performance cruisers.

Holds Its Shape

X-Drive sails are created using a two-part construction method. The first step starts with lightweight laminated sailcloth that’s cut into cross-cut panels with shaped seams. Once the broad-seamed panels are assembled, the sail will have the exact aerodynamic shape the sail designer created.

Then UK Sailmakers uses proprietary machines to lay-down a grid of continuous yarns that span the sail. These yarns run continuously from corner-to-corner following the sail’s primary load paths. These yarns are high-strength and low -stretch and they serve the same purpose as the steel skeleton in a tall building – the yarns carry the highest loads in the sail while the paneled skin defines the aerodynamic shape.

And since the continuous, high-strength yarns cross over the seams between the cross-cut panels, seam creep and catastrophic sail failures are eliminated.

Depending on your specific needs and which X-Drive sail you select, these yarns can be carbon fiber, Endumax, or S-Glass. A grid of carbon fiber yarns on a laminate with a black aramid scrim gives the sail an all-black appearance. For those who prefer sails that are all-white, X-Drive Silver sails look like traditional, all-white sails.

UKSailmakersX DriveApplication 3
X-Drive is a two-part construction system. As the diagram shows, the sail is made from a light weight material cut into cross-cut panels that, when put together with broad seaming, have the 3-D shape created by the sail designer. Next the sail is reinforced with a grid of narrow, high-strength, low-stretch fibers that are bonded to the sail.
Ben 34.7 X Drive Carbon Film jib sm e1665599313774
Beneteau First 34.7 jib with X-Drive Carbon fibers on a polyester laminate. The mainsail has white Endumax yarns on a white taffeta based laminate, which gives extra durability at the cost of extra weight.

Cost Effective

The cost of the sail is also controlled because the sail surface can be made out of a less expensive, lightweight laminated material, whose only job is to give the sail its 3-D shape. All the sail‘s strength comes from the dense grid of continuous high-strength fibers that are bonded to the sail’s surface.

Construction Options

X DriveCarbonGenoaHalfTonner
X-Drive Carbon

Description:
Load-path fiber-reinforced sail construction for performance cruising and club racing.

Construction:
Extra lightweight cross-cut laminate panels reinforced with continuous corner-to-corner fibers bonded to the sail.

Material:
Carbon fiber load-path yarns applied along the sail’s computer predicted load-paths. Carbon fiber is the strongest and least stretchy yarn used in sailmaking.

Shape Stability:
★★★★

Durability:
★★★★

Shape after 500 hours:
Circa 80%

Price:
$$$$

Melges24SunnyValeX Drive
X-Drive Silver

Description:
Load-path fiber-reinforced sail construction for performance cruising and club racing. Allows for an all-white appearance.

Construction:
Extra lightweight cross-cut laminate panels reinforced with continuous corner-to-corner fibers bonded to the sail.

Material:
S-Glass fiber load-path yarns applied along the sail’s computer predicted load paths. S-Glass yarns have more stretch than carbon but are less expensive.

Shape Stability:
★★★

Durability:
★★★★

Shape after 500 hours:
Circa 70%

Price:
$$$$
